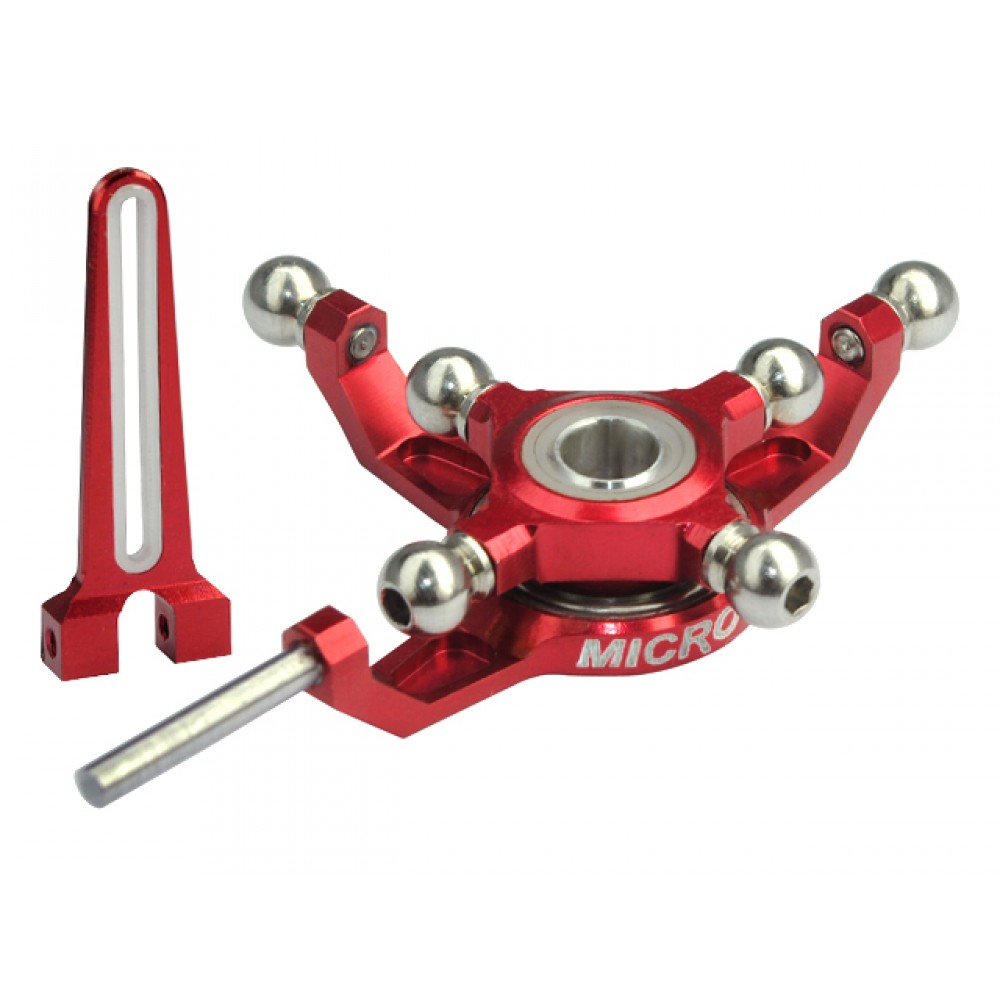

Aluminum Swashplate w/ Anti-Rotation Guide (RED) - BLADE 200 SRX
  • Aluminum Swashplate w/ Anti-Rotation Guide (RED) - BLADE 200 SRX

Aluminum Swashplate w/ Anti-Rotation Guide (RED) - BLADE 200 SRX

Brand: MICROHELI
Product Code: MH-2SRX112X
Availability: In Stock (usually ships within 24 hours)
Price: $37.99

Available Options

Color:

Custom Color (product ship after 2 days)
Special Offers:
- Free Worldwide Expedite Shipping on orders over $175 (exclude oversized items).
This product was added to our catalog on 07/03/2014
Product infomation was last updated on 06/18/2017

Aluminum Swashplate w/ Anti-Rotation Guide (RED) - BLADE 200 SRX


The Aluminum Swashplate w/ Anti-Rotation Guide is specifically designed for improvements in stability, durability and overall performance on the Blade 200 SR X helicopter.
This combo is machined with precise CNC tolerances from Aluminum to gain the best precision together with Stainless Steel Anti-Rotation Pin, Stainless Steel Ball Linkages, Aluminum Anti-Rotation Bracket and Delrin slide trench of Anti-Rotation Bushing to prevent wear and tear for long time use. This combo is directly replaced the stock plastic swashplate system.
In addition, the high quality selected Radial Bearing is utilized to minimize any unwanted slops and plays between upper swash and lower swash. More than that, the Aluminum Swashplate is technically re-engineered center ball in line with swash arm balls to allow the Swashplate tilting linearly and precisely which produces the most accurate and fast cyclic response and cyclic power on Blade 200 SR X flybarless head system.
The Aluminum Swashplate is thin profile, more tilt angle (15 degrees) than the stock plastic swashplate (only 14 degrees) and all optimized for weight 4.37g (only 0.98g heavier than stock plastic swashplate).
*Microheli Aluminum Swashplate system design is optimized: The Anti-Rotation Pin 1.8- and the slide trench of Anti-Rotation Bushing 1.8+ for maximum precision, no more vibe or loosening.
*The stock plastic Swashplate system design: The Anti-Rotation Pin 1.8 and the slide trench of Anti-Rotation Bushing 2.1 which cause vibe or loosening easily.
Just add the Aluminum Swashplate w/ Anti-Rotation Guide, you now have a complete combo with the highest precision Anti-Rotation Pin and slide trench of Anti-Rotation Bushing design for optimal flight performance, without moving left or right when the Swashplate goes up-n-down to the Shaft direction.


  Includes
1 x Aluminum Swashplate MH-2SRX112
1 x Anti-Rotation Guide MH-2SRX111
Hardwares


  Materials
Aluminum
Stainless Steel


  Features
100% CNC machined from Aluminum, Stainless Steel and Delrin
Specifically designed for improvements in stability, durability and overall performance on the Blade 200 SR X helicopter
Machined with precise CNC tolerances from Aluminum to gain the best precision together with Stainless Steel Anti-Rotation Pin, Stainless Steel Ball Linkages, Aluminum Anti-Rotation Bracket and Delrin slide trench of Anti-Rotation Bushing to prevent wear and tear for long time use
The high quality selected Radial Bearing is utilized to minimize any unwanted slops and plays between upper swash and lower swash
Technically re-engineered center ball in line with swash arm balls to allow the Swashplate tilting linearly and precisely which produces the most accurate and fast cyclic response and cyclic power on Blade 200 SR X flybarless head system
Thin profile, more tilt angle
Optimized for the Anti-Rotation Pin 1.8- and the slide trench of Anti-Rotation Bushing 1.8+ for maximum precision, no more vibe or loosening
Unique and stylish Aluminum Swashplate w/ Anti-Rotation Guide design


  Weight
5.24g


  Usage
For Blade 200 SR X


  Requires
Read and follow carefully the Assembly Instruction
Loctite (#242 is recommended) is required to apply to all mechanical screws for safety during fly
Tools


  Instruction
Manual and Instruction included
